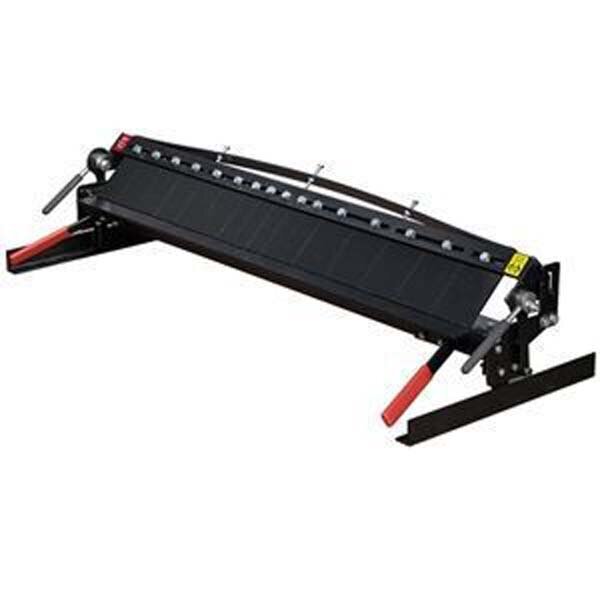

Malco MB48B Pan Style Portable Mini-Brake

Malco MB48B Pan Style Portable Mini-Brake features:

On-the-job pans, angled corners, or large components
Fast, easy assembly
One-person Portability
135ﾰ bends in 22-gauge (0.86 mm) galvanized
The MB48B operates on a workbench, tailgate, or optional legs to produce 135ﾰ bends in 22-gauge (0.86 mm) galvanized steel at a maximum 48 inch (1.2 m) width.
A 5/16-inch (7.9 mm) plate-steel table apron and anvil frame, with adjustable set-back and strengthening ribs, ensures a uniform bend.
Cam-over-center clamps keep the anvil secure in any position for safe operation.

Pan Style Portable Mini-Brake specifications:

Manufacturer: Malco
Model No.: MB48B
Category: Metal Duct Tools & Accessories
Type: Mini-Brake
Bend Angle: 0-135 degree
Max Bend Width: 48 in. (1.2 m)
Min. Bend Width: 2 in. (50.8 mm)
Min. Flange Max Pan Height: 3 in. (76.2 mm)
Max Pan Height: 1/2 in. (12.7 mm)
Total Shipping Weight: 109 lbs.
Product dimensions: 58 x 8 x 8 inches and 59 x10 x10
UPC: 686046543994

Malco MB48B Pan Style Portable Mini-Brake includes:

(1) Pan Style Portable Mini-Brake
16 movable, plate-steel fingers: Five 2-inch (50.8 mm); Six 3-inch (76.2 mm); and Five 4-inch (101.6 mm) fingers to create a maximum 48-inch (1.2 m) bending width.
This Product will ship in two boxes
